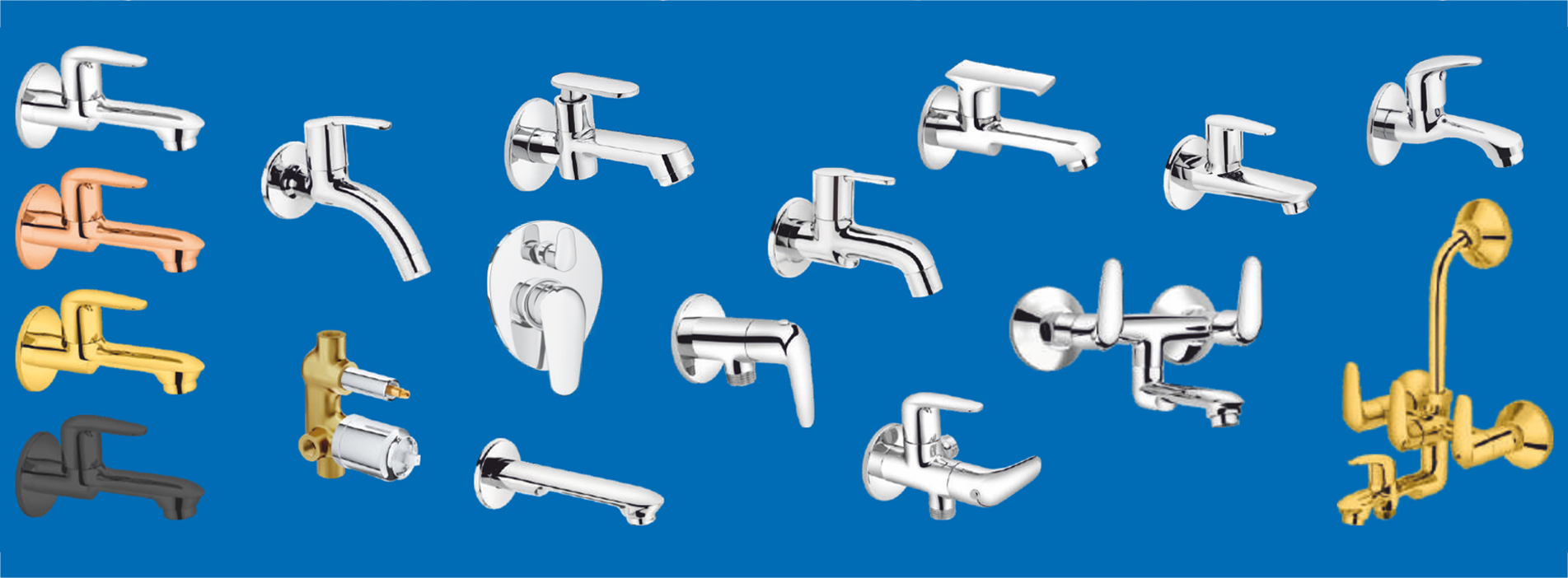

CP Fitting
Technical Details (Standardization & Specification)
- Ranges for residential & commercial projects.
- Dipson Presence in PAN India and expand as a global player.
- Our production capacity is 5,000 faucets a day.
(1) Basic Raw Material :
Die cast Brass composition is maintained within limit as per standard. We using latest & modern CNC machine technology for drive all manufacturing process to reach our exact match of component according to standard size.
Particulars | As Per Standard | Dipson Product |
---|---|---|
Copper | 58 – 63% | 58 – 61% |
Lead | 0.5 – 2.5% | 1.8 – 2.3% |
Tin | 0.0 – 1.0% | 0.2 – 0.4% |
Nickel | 0.0 – 1.0% | 0.2 – 0.4% |
Iron | 0.0 – 0.8% | 0.1 – 0.4% |
Aluminum | 0.2 – 0.8% | 0.3 – 0.3% |
Manganese | 0.0 – 0.5% | 0.06 – 0.07% |
Zinc | Balance | Balance |
(2) Chrome Finish :
Polished chrome is shiny, bright and mirror like watch reflects light from its surface due to chrome electroplating over the base metal (Brass). The high plating thickness of Nickel 10 micron & chrome 0.3 micron, provide tolerance to extreme climate and tough Indian water conditions. A salt spray test is done to ensure our finished products are durable and corrosion resistant, it is very durable, low maintenance and easy to clean.
Nickel Chromium - Coating Thickness
Particulars | As Per Standard | Dipson Product |
---|---|---|
Nickel 10 Micron | 10 to 12 Micron | 11 to 13Micron |
Chromium | 0.3 Micron | 0.3 to 0.7 Micron |
(3) Cartridge :
The cartridge is apiece in the faucet that controls water flow. We use finest quality ceramic cartridges in our faucets, Innovated Germany. Ceramic cartridges were truly built to last. The cartridges is tested for unstable water pressure and has a performing life of 500000 ( 5 lakh) operating times. The internal metal parts of the cartridge are made of Brass to ensure flawless performance for a longer period.
High Flow Single Lever

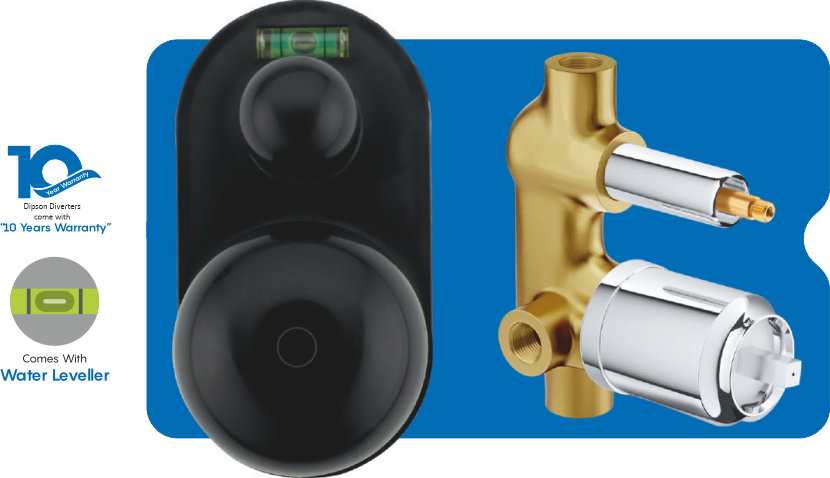

Concealed Diverter Technical Futures
(4) Aerator :
Aerators are a brilliantly simple and effective way to cut the amount of water you use by to 60%. We use aerators in our faucets which is made in Germany. The characteristic honeycomb pattern offers a good stream quality and timescale protection.
(5) Rubber Washer / O Ring / Synthetic Rubber (NBR Grade) :
Physical Properties | Observed |
---|---|
Shore Hardness “A” | 70 - 80 |
Tensile Strength kgf/CM2 | 180 - 190 |
Elongation % | 350 - 400 |
Specify Gravity | 1.20 - 1.25 |
Compression Set % | 19 - 22 |
(6) Flow rate as per standard at 3kg/cm2 :
Particulars | Size | As Per Standard | Dipson Product |
---|---|---|---|
Bib Cock / Pillar Cock | 15mm | 12 LPM | Pass |
Angle Cock | 15mm | 12 LPM | Pass |
Basin Mixer | 15mm | 12 LPM | Pass |
Wall Mixer | 15mm | 12 LPM | Pass |
The single lever Concealed Diverter Operates at a higher efficiency as compared to regular diverters. It can operate at a minimum 0.4 Bar pressure.
Flow Rate (Per Liter Per Minutes) | ||||||
---|---|---|---|---|---|---|
Tank Height | 20 ft | 25 ft | 30 ft | 60 ft | 90 ft | 120 ft |
Water Pressure | 0.4 Bar | 0.5 Bar | 1.0 Bar | 2.0 Bar | 3.0 Bar | 4.0 Bar |
Liter | 13 | 23 | 32 | 45 | 55 | 62 |

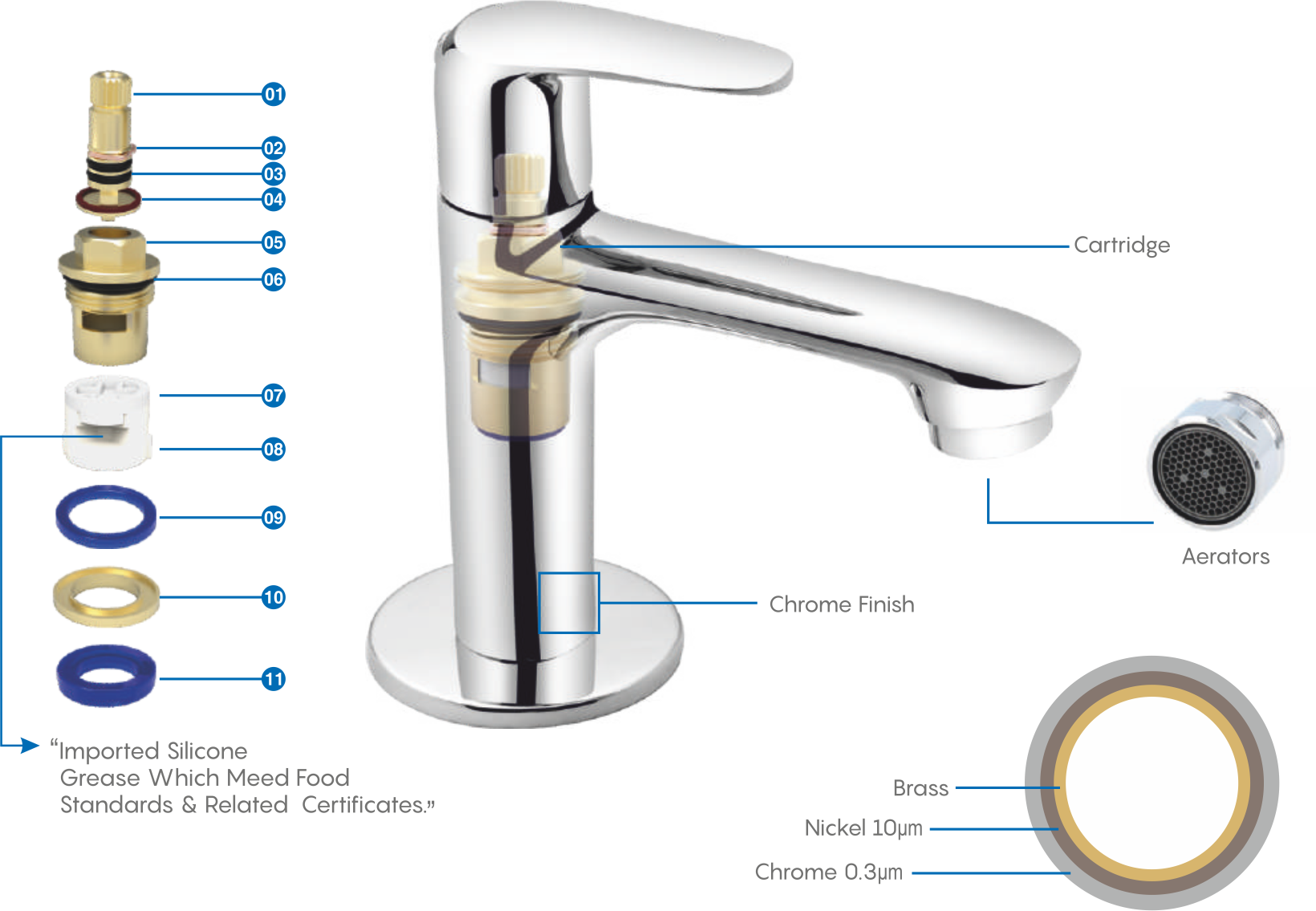

(7) Faucets Technology
Sr. No. | Component | Material Description |
---|---|---|
1 | Lever | Hpb59-3 |
2 | Garter Spring | QSn6.5-10 |
3 | O Ring Gasket | EPDM |
4 | Lubricating O-Washer | POM |
5 | Brass Housing | Hpb59-3 |
6 | O Ring Gasket | EPDM |
7 | Moving Dise | AL203>96% |
8 | Fixed Dise | AL203>96% |
9 | Sealing Gasket | Silicone |
10 | Base | Hpb59-3 |
11 | Sealing Gasket | Silicone |
- Faucet Warranty 10 Years
- Shower Warranty 1 Year
- Health Faucets Warranty 1 Year
(8) After Sales & Service :
For any support regarding after sales service, Dipson is easily accessible throughout India. ( Services Open : Thursday to Tuesday {Wednesday off} ; Time Period : 09:30 AM to 6:30 PM )
