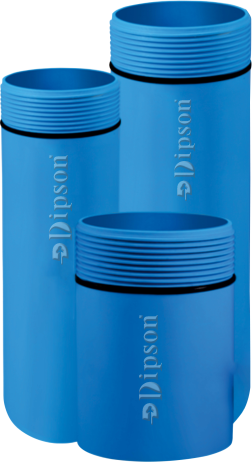

Casing pipes Pipe for Bore Well Application
Dipson Casing Pipes are as per Bureau of indian Standards Specifications - 12818 : 2010 and are available in blue colour, one end is male threaded, whereas, the other and is a female threaded socket, casing pipes with threads on CNCmachies are also available. Casing pipes are available in two types:
Technical Details of Casing Pipes IS:12818
Dimension of Medium Wall Casing (CM) Pipes - For Bore Well Depth 80-250 Meters
| Nominal Diameter DN | Mean Outside Diameter | Outside Diameter At Any Point | Mean O.D.O.C | Wall Thickness | |||
|---|---|---|---|---|---|---|---|
| 40 | 48.00 | 48.20 | 47.90 | 48.30 | 52.00 | 3.50 | 4.00 |
| 50 | 60.00 | 60.20 | 59.90 | 60.30 | 65.00 | 4.00 | 4.60 |
| 80 | 88.00 | 88.30 | 87.90 | 88.40 | 94.00 | 4.00 | 4.60 |
| 100 | 113.00 | 113.30 | 112.90 | 113.40 | 120.00 | 5.00 | 5.70 |
| 125 | 140.00 | 140.40 | 139.90 | 140.50 | 150.00 | 6.50 | 7.30 |
| 150 | 165.00 | 165.40 | 164.60 | 165.60 | 178.00 | 7.50 | 8.50 |
| 175 | 200.00 | 200.50 | 199.60 | 200.60 | 215.00 | 8.80 | 9.80 |
| 200 | 225.00 | 225.50 | 224.50 | 225.80 | 243.00 | 10.00 | 11.20 |
Dimension of Shallow Wall Casing (CS) Pipes - For Bore Well Depth 80 Meters.
Nominal
Diameter DN
Mean Outside Diameter
Outside Diameter
At Any Point
Mean
O.D.O.C
Wall Thickness
150
165.00
165.40
164.60
165.60
174.00
5.70
6.50
175
200.00
200.50
1199.60
200.60
211.00
7.00
7.80
200
225.00
225.50
224.50
225.80
238.00
7.60
8.80
Nominal |
Mean Outside Diameter |
Outside Diameter |
Mean |
Wall Thickness |
|||
| 150 | 165.00 | 165.40 | 164.60 | 165.60 | 174.00 | 5.70 | 6.50 |
| 175 | 200.00 | 200.50 | 1199.60 | 200.60 | 211.00 | 7.00 | 7.80 |
| 200 | 225.00 | 225.50 | 224.50 | 225.80 | 238.00 | 7.60 | 8.80 |
Casing Pipes
 |
CM. Pipes (upto 250mtr. depth) |
CM. Pipes (upto 80mtr. depth) |
||||
Size |
Per Mtr |
Size |
Per Mtr |
|||
INCH |
MM |
Packing |
INCH |
MM |
Packing |
|
| 1-1/2 | 40 | 1 | - | - | - | |
| 2 | 50 | 1 | - | - | - | |
| 3 | 80 | 1 | - | - | - | |
| 4 | 100 | 1 | - | - | - | |
| 5 | 125 | 1 | - | - | - | |
| 6 | 150 | 1 | 6 | 150 | 1 | |
| 7 | 175 | 1 | 7 | 175 | 1 | |
| 8 | 200 | 1 | 8 | 200 | 1 | |
